Quality Assurance
All our products meet international quality standards and UAE regulatory requirements.
Expert Team
Our experienced engineers and technicians ensure perfect solutions for your specific needs.
Custom Solutions
We design and manufacture racking systems tailored to your warehouse dimensions and requirements.
Ongoing Support
Comprehensive after-sales service and maintenance support to keep your operations running smoothly.
Industries We Serve
Our header racking and shelving solutions cater to diverse industries across the UAE
Logistics & Distribution
Optimized storage solutions for efficient supply chain operations.
Manufacturing
Custom racking for raw materials, work-in-progress, and finished goods.
Retail & E-commerce
High-density storage solutions for inventory management.
FMCG
Specialized solutions for fast-moving consumer goods storage.
Racking & Shelving Systems
Signature Racking Systems delivers engineered industrial storage solutions designed for safety, durability, and efficiency. Each racking component is manufactured to international quality standards and tailored to meet the demands of modern warehouses, distribution centers, and manufacturing plants.
Upright Frames (Racking Frames)
Engineered upright frames provide the vertical backbone of pallet racking systems, manufactured from high-strength steel with precision slotting for flexible beam connection.
| Feature | Value |
|---|---|
| Upright Depth (mm) | 80 – 120 |
| Frame Height (mm) | Up to 12,000 |
| Frame Load Capacity (Kg) | Up to 20,000 |
| Upright Thickness (mm) | 1.8 – 3.0 |
| Base Plate Size (mm) | Custom per design |
| Finish | Powder-coated / Hot Dip Galvanized |

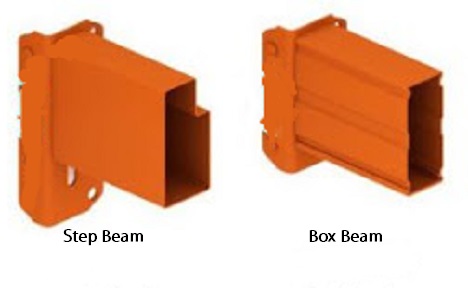

Box Beams & Step Beams
Beams connect the upright frames and carry pallet loads. Available in box and step profiles depending on storage application.
| Feature | Value |
|---|---|
| Beam Length (mm) | 1350 – 3900 |
| Beam Height (mm) | 80 – 160 |
| Beam Thickness (mm) | 1.5 – 2.5 |
| Load Capacity per Level (Kg) | 500 – 4000 |
| Beam Connector | 3-pin safety lock |
| Finish | Powder-coated |
Pallet Supports
Designed to provide extra safety under pallets, pallet supports distribute weight evenly across beams.
| Feature | Value |
|---|---|
| Support Length (mm) | 800 – 1200 |
| Profile | U-Channel / Box |
| Thickness (mm) | 1.5 – 2.0 |
| Capacity per Support (Kg) | 300 – 600 |
| Finish | Galvanized Steel |
Spacers
Spacers are used for back-to-back racking rows to maintain equal aisle spacing and structural stability.
| Feature | Value |
|---|---|
| Spacer Length (mm) | 200 – 600 |
| Thickness (mm) | 2.0 – 3.0 |
| Bolt Connection | High-tensile M12 |
| Finish | Powder-coated / Galvanized |
Drop-Over Panels
Steel drop-over panels cover racking beams to provide flat storage for cartons, crates, and non-palletized goods.
| Feature | Value |
|---|---|
| Panel Length (mm) | 900 – 1200 |
| Panel Width (mm) | 300 – 450 |
| Thickness (mm) | 0.8 – 1.2 |
| Load Capacity per Panel (Kg) | 100 – 300 |
| Finish | Powder-coated / Galvanized |
Drop-In Panels
Panels fit inside step beams to provide a flush decking surface.
| Feature | Value |
|---|---|
| Panel Length (mm) | 900 – 1200 |
| Panel Width (mm) | 300 – 450 |
| Thickness (mm) | 0.8 – 1.5 |
| Load Capacity (Kg) | 100 – 300 |
| Finish | Powder-coated / Galvanized |
Gratings (Open Decking)
Steel gratings offer ventilation, fire safety compliance, and dust-free decking.
| Feature | Value |
|---|---|
| Grating Depth (mm) | 900 – 1200 |
| Panel Width (mm) | 300 – 600 |
| Mesh Opening | 25x100 / 50x100 |
| Load Capacity (Kg) | 500 – 1200 |
| Finish | Hot Dip Galvanized |
Checker Plate Decking
Heavy-duty checker plates provide solid flooring for racking and mezzanines.
| Feature | Value |
|---|---|
| Plate Thickness (mm) | 2.0 – 4.0 |
| Standard Panel Size (mm) | 900x1200 |
| Surface | Anti-slip checker pattern |
| Load Capacity (Kg/m²) | 300 – 800 |
| Finish | Powder-coated / Galvanized |
Wire Mesh Decking
Wire mesh decking improves pallet safety, supports loose items, and enhances fire protection compliance.
| Feature | Value |
|---|---|
| Depth (mm) | 900 – 1200 |
| Width (mm) | 1200 – 1350 |
| Wire Diameter (mm) | 4.0 – 6.0 |
| Load Capacity (Kg) | 500 – 1500 |
| Finish | Powder-coated / Galvanized |
Transform Your Warehouse
Every racking component from Signature Racking Systems is tested for safety, engineered for durability, and designed for efficiency. Our solutions are tailored for UAE industries — from logistics and retail to manufacturing and construction.
